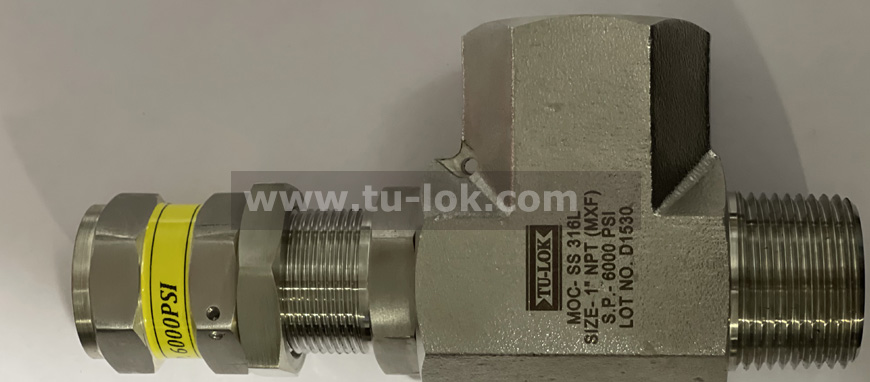

Pressure Relief Valves
What is a Pressure Relief Valve?
A Pressure Relief Valve (PRV) is a critical safety device used to protect equipment, pipelines, and systems from excessive pressure build-up. When system pressure exceeds a pre-set limit, the valve automatically opens to release the excess pressure, ensuring safety and preventing potential damage.
At ABC Master Qatar, we provide a wide range of Pressure Relief Valves in Qatar designed for oil & gas, industrial, water treatment, HVAC, and hydraulic applications.
Material Specification of Pressure Relief Valves
| BRAND NAME | TU-LOK |
| VALVES SIZE | 1/8″ TO 2″ / 6 MM TO 50 MM |
| THREAD | NPT, BSPP, BSPT, JIC, METRIC, UNF |
| CONNECTION | THREADED, TUBE END, FLANGE END |
| FLOW PATTERN | STRAIGHT, ANGLE |
| FUNCTION | 2 WAY |
| BODY SHAPE | SQUARE, HEXAGON |
| SET PRESSURE | UPTO 10,000 PSI |
| ORIFICE SIZE | 2 MM TO 9.5 MM |
| BODY TYPE | FORGED, BAR STOCK |
| MATERIAL | SS 316, SS 304, SS 316 TI, COPPER, BRASS, DUPLEX, CS, INCONEL, SUPER DUPLEX, HASTELLOY, MONEL, ALLOY 20, SMO 254, 904L, TITANIUM & ALL OTHER ALLOYS |
How Do Pressure Relief Valves Work?
The working principle of a Pressure Relief Valve is simple but effective:
- Normal Operation – The valve remains closed as long as the system pressure stays below the set pressure.
- Overpressure Condition – When pressure rises above the set limit, the valve opens to release fluid or gas, reducing system pressure.
- Reseating – Once the pressure drops back to a safe level, the valve automatically closes, ensuring continuous protection.
This automatic cycle prevents catastrophic equipment failure, keeps workers safe, and maintains operational efficiency.

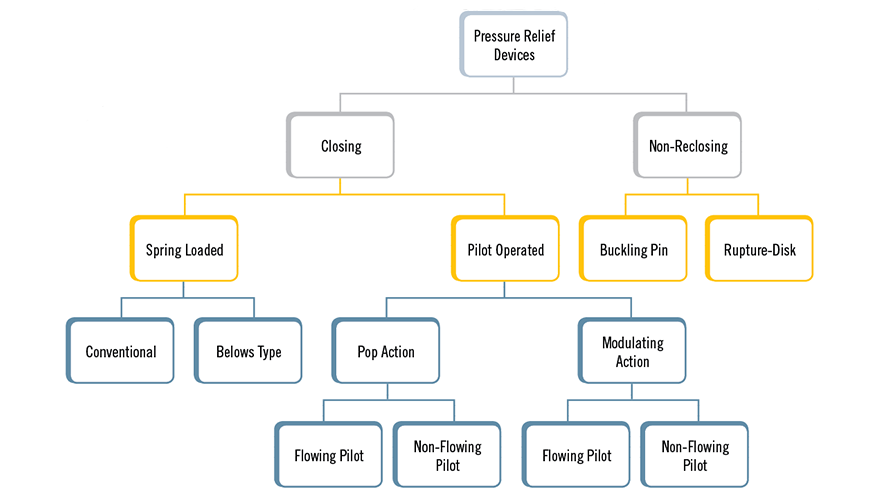

Types of Pressure Relief Valves
ABC Master Qatar offers a wide variety of Pressure Relief Valves in Qatar, including:
- Safety Valves – Designed for steam, gas, or air applications where rapid pressure release is critical.
- Relief Valves – Common in liquid systems to control over-pressurization.
- Safety Relief Valves – A hybrid type that can handle both liquid and gas applications.
- Temperature and Pressure Safety Relief Valves – Used in hot water systems and boilers to control both pressure and temperature.
- Rupture Disk Devices – Non-reclosing devices that burst at a specified pressure, offering fail-safe protection.
Pressure Relief Valve Testing Methods
Pressure Relief Valve Testing Methods
To ensure reliability, all Pressure Relief Valves must undergo regular testing. At ABC Master Qatar, we follow industry-standard testing methods:
Bench Testing
- Conducted outside the system on a test stand
- Used to verify set pressure, opening pressure, and reseating accuracy
- Ensures the valve performs before installation or after maintenance
Inline Testing
- Performed while the valve is installed in the system
- Allows testing under real operating conditions
- Ensures valves function without removing them from service
Applications of Pressure Relief Valves
Pressure Relief Valves are widely used in industries where pressure control is essential. Some common applications include:
- Oil & Gas Industry – Protecting pipelines, separators, and compressors
- Chemical Processing – Handling corrosive fluids and preventing over-pressurization
- Power Plants – Maintaining safe steam and condensate systems
- Water Supply & Treatment – Preventing pressure surges in pumps and distribution networks
- HVAC Systems – Ensuring safe operation of boilers, chillers, and heating equipment
- Hydraulic Systems – Preventing excessive hydraulic pressure in machinery
Looking for check valves in Qatar?
If you are looking for a reliable Pressure Relief Valve supplier in Qatar, ABC Master Qatar is here to help. We provide high-quality safety and relief valves designed to protect your systems across industries such as oil & gas, water treatment, HVAC, and hydraulics. Our expert team is ready to guide you in selecting the right valve for your application, ensuring safety, efficiency, and compliance with international standards.
