High Pressure Valve

High-pressure valves and fittings regulate, control, and direct the flow of fluids or gases in high-pressure systems. Engineers design these components to withstand extreme pressure conditions, ensuring efficiency and safety in critical applications such as oil and gas, chemical processing, and hydraulic systems.

Industrial applications demanding durability and reliability rely on high-pressure valves and fittings. At ABC Master, we provide top-quality high-pressure valves and fittings to ensure optimal performance and safety across various industries.

High Pressure Valves

Features and Benefits of High Pressure Valves and Fittings

  • Durability: Manufacturers use high-strength materials like stainless steel and brass to make them, ensuring resistance to wear and tear.
  • Leak-Proof Design: Ensures secure sealing to prevent leaks under extreme pressure.
  • Corrosion Resistance: They withstand harsh environments and extend the system’s lifespan.
  • Precision Engineering: Engineers design them for seamless integration into high-pressure systems.
  • Enhanced Safety: It reduces the risk of leaks, bursts, and system failures.
  • Cost-Effective: Long-lasting materials minimize the need for frequent replacements.
  • Versatility: Suitable for a wide range of industries, including oil & gas, chemical, and hydraulic systems.

Types of High Pressure Valves and Fittings

Ball valves

  • Our High-Pressure Ball Valves with NPT thread connections are rated for working pressures up to 15,000 psi.
  • Available with durable metal seats or soft-seal options for reliable performance.

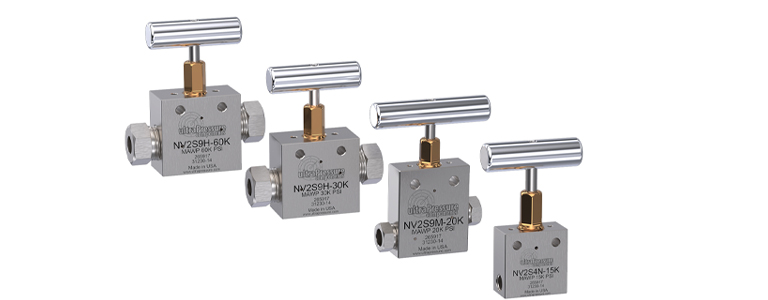

Needle Valves

  • Our Standard Needle Valves with Medium Pressure Thread connections rated for working pressures up to 20,000 psi.
  • Available in 2-Way Straight, 2-Way Angle, 3-Way Two Inlet, 3-Way Two Outlet, 2-Stem Manifold, and Replaceable Seat

Check valves

  • Our High Pressure Check Valves with NPT Thread connections rated for working pressures up to 15,000 psi.
  • Available in Ball Seat Poppet and Soft Seat O-ring Poppet seals.
check valves

NPT Connections

  • NPT (National Pipe Taper) fittings are available in working pressures to 15,000 psi (1034 bar). However, working pressures may be decreased depending upon thread size.
  • Fittings and tubing are manufactured from cold worked 316 stainless steel. All NPT fittings & adapters are available in special material upon request.
  • Available sizes are 1/16”, 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2” and 2”Straight Fittings & Adapters, Nipples, Elbows, Tees, Crosses, Bulkhead Couplings, Caps and Plugs available in STOCK
NPT Fittings

BSP Connections

  • BSP (British Straight Pipe) have a straight thread cone seal and are rated for working pressures up to 30,000 psi (2068 bar). These fittings may also have an external cone. BSP fittings are manufactured from cold worked 316 stainless steel.
  •  All BSP fittings and adapters are available in special material upon request.
  • Available STOCK Sizes are 1/4”, 3/8” and 1/2”
  • Straight Fittings and Adapters, Caps and Plugs available in STOCK
BSP Fittings
